员工路线图实战

指标要求

  1. 展示每个员工从驻云到家的路线
  2. 统计市内浦东和浦西员工人数比例
  3. 统计市外员工人数比例

准备工作

工具准备

数据准备

上海市坐标

121.473658, 31.230378

驻云科技坐标

121.590433,31.204561

员工家庭住址坐标

编号 员工 性别 地址 坐标
1 鹏 男 景绣路 121.541226,31.183463
2 萍 女 浦东新区长岛花苑 121.602724,31.264731
3 涛 男 新村路、岚皋路 121.422777,31.264651
4 义 男 上海火车站 121.455739,31.249563
5 红 男 南六公路399号 121.707167,31.058938
6 行 男 苏州园区站 120.710584,31.341098
7 航 男 闵行区纪王镇 121.266974,31.242546
8 楚 女 佘山地铁站 121.229686,31.104097
9 雪 女 康桥 121.569136,31.142536

地区分类统计

按照市统计 占比 细分 占比
上海市 8/9 浦东 1/2
浦西 1/2
非上海市 1/9 苏州 1

性别分类

按照性别统计 占比
男 2/3
女 1/3

图片准备

右上角边框

左上角边框

左下角边框

DataV配置

数据配置准备

# 地图大小和中心
[
  {
    "zoom" : 10,
    "lng": 121.473658,
    "lat": 31.230378
  }
]

# 飞线层地点映射
[
  {
    "from": "121.590433,31.204561",
    "to": "121.541226,31.183463"
  },
  {
    "from": "121.590433,31.204561",
    "to": "121.602724,31.264731"
  },
  {
    "from": "121.590433,31.204561",
    "to": "121.422777,31.264651"
  },
  {
    "from": "121.590433,31.204561",
    "to": "121.455739,31.249563"
  },
  {
    "from": "121.590433,31.204561",
    "to": "121.602724,31.264731"
  },
  {
    "from": "121.590433,31.204561",
    "to": "121.707167,31.058938"
  },
  {
    "from": "121.590433,31.204561",
    "to": "120.710584,31.341098"
  },
  {
    "from": "121.590433,31.204561",
    "to": "121.266974,31.242546"
  },
  {
    "from": "121.590433,31.204561",
    "to": "121.229686,31.104097"
  },
  {
    "from": "121.590433,31.204561",
    "to": "121.569136,31.142536"
  }
]

组件配置

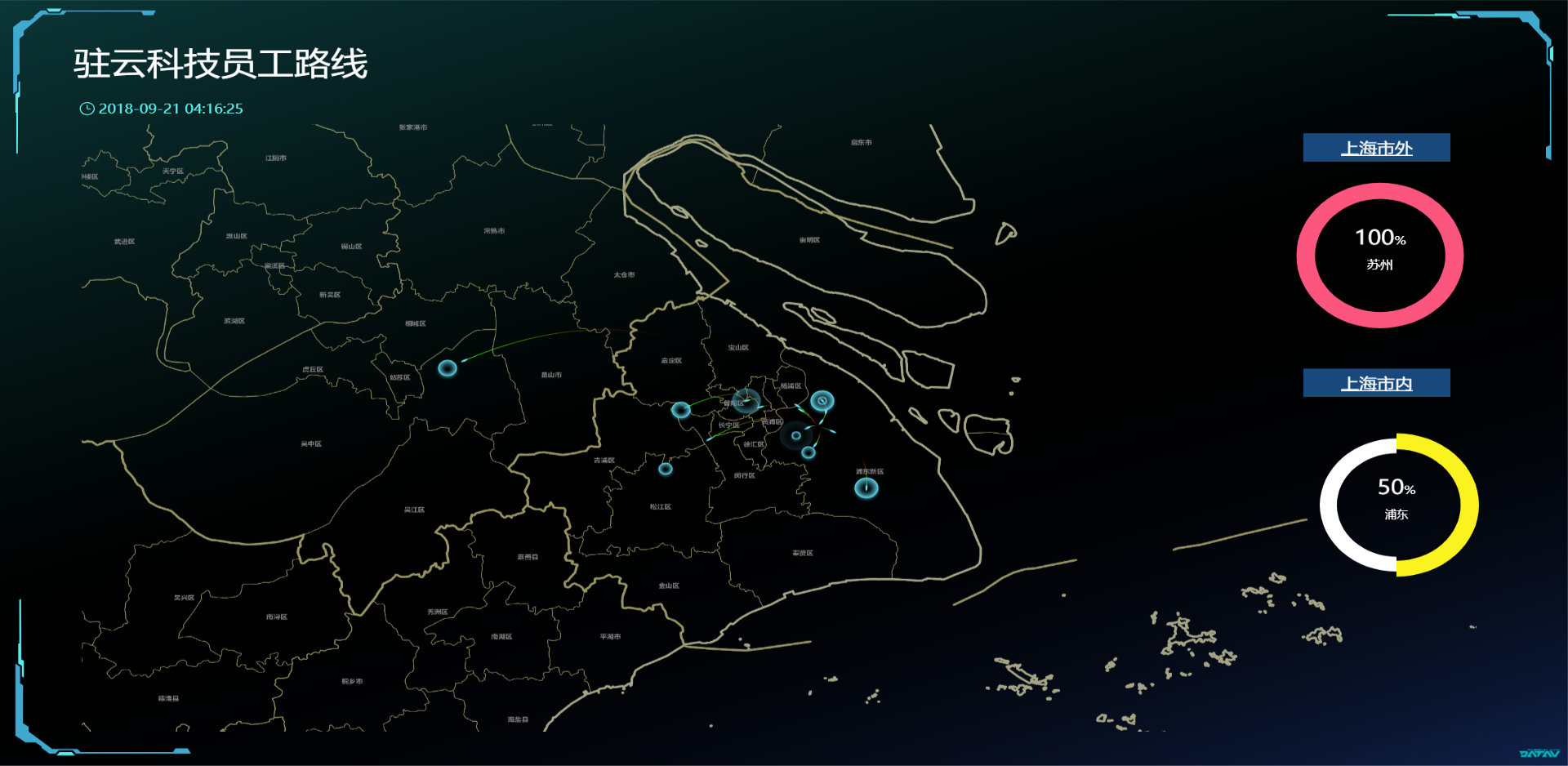

展现
