MySQL的元锁MDL发生场景和解决方法总结

摘要:MetaData Lock即元数据锁,在数据库中元数据即数据字典信息包括db,table,function,procedure,trigger,event等。metadata lock主要为了保证元数据的一致性,用于处理不同线程操作同一数据对象的同步与互斥问题。

今天有客户(MySQL 5.6)遇到该问题,最关键的是属于第三种情况,google上根本找不到类似的故障案例,唯一一个非常接近的故障案例中数据库版本却不同(具体看下文慢慢聊),哎,困难重重啊,最终还是解决了哈。

alter table的语句是很危险的,在操作之前最好确认对要操作的表没有任何进行中的操作、没有未提交事务、也没有显式事务中的报错语句。如果有alter table的维护任务,在无人监管的时候运行,最好通过lock_wait_timeout设置好超时时间,避免长时间的metedata锁等待。

什么是metadata lock?

MetaData Lock即元数据锁,在数据库中元数据即数据字典信息包括db,table,function,procedure,trigger,event等。metadata lock主要为了保证元数据的一致性,用于处理不同线程操作同一数据对象的同步与互斥问题。

MetaData Lock的前世今生

MDL锁是为了解决一个有名的bug#989,所以在5.5.3版本引入了MDL锁。其实5.5也有类似保护元数据的机制,只是没有明确提出MDL概念而已。但是5.5之前版本(比如5.1)与5.5之后版本在保护元数据这块有一个显著的不同点是,5.1对于元数据的保护是语句级别的,5.5对于metadata的保护是事务级别的。所谓语句级别,即语句执行完成后,无论事务是否提交或回滚,其表结构可以被其他会话更新;而事务级别则是在事务结束后才释放MDL。引入MDL锁主要是为了解决两个问题

  • 事务隔离问题:比如在可重复隔离级别下,会话A在2次查询期间,会话B对表结构做了修改,两次查询结果就会不一致,无法满足可重复读的要求。
  • 数据复制问题:比如会话A执行了多条更新语句期间,另外一个会话B做了表结构变更并且先提交,就会导致slave在重做时,先重做alter,再重做update时就会出现复制错误的现象。也就是上面提到的bug#989

DDL操作与MetaData Lock

  • metadata lock 机制是为了保证数据一致性存在的,在有事务的操作时候,需要首先获得metadata lock ,然后操作,如果这个时候,又来了一个事务也要ddl操作同一个表,就会出现 metadata lock。
  • 自动提交模式下,单语句就是一个事务,执行完了,事务也就结束了。
  • preparestatement 会获得 metalock,一旦prepare 完毕, metalock 就释放了。
  • online DDL应该是指在alter table进行的时候, 插入/修改/删除数据的sql语句不会Waiting for table metadata lock。一旦alter table TableA的操作停滞在Waiting for table metadata lock的状态,后续对TableA的任何操作(包括读)都无法进行,也会在Opening tables的阶段进入Waiting for table metadata lock的队列。

Alter table 会发生锁的三种场景

场景1

  • 会话A对booboo表执行读操作select *,sleep(60) from booboo;,正在进行未提交事务
  • 会话B对booboo表执行在线DDL操作alter table booboo add q4 int default 0;
  • 会话C对booboo表执行隐式读操作select *,sleep(60) from booboo;,进行等待
  • 会话D对booboo表执行显示读操作begin;select * from booboo;也会进行等待
  • 通过show processlist可以看到会话A(对booboo表上正在进行的操作),此时会话B(alter table语句)无法获取到metadata 独占锁,会进行等待,会话C和会话D都会进行等待,且能从processlist表中看到对booboo表的操作
  • 会话A提交事务后或kill之后,会话C事务结束,会话Dselect语句执行成功,事务提交则会话B可执行,否则进入场景2
mysql> show processlist;
+----+------+-----------+-----------+---------+------+---------------------------------+-----------------------------------------+
| Id | User | Host | db | Command | Time | State | Info |
+----+------+-----------+-----------+---------+------+---------------------------------+-----------------------------------------+
| 6 | root | localhost | uplooking | Query | 167 | Waiting for table metadata lock | alter table booboo add q4 int default 0 |
| 7 | root | localhost | uplooking | Query | 155 | Waiting for table metadata lock | select * from booboo |
| 8 | root | localhost | uplooking | Query | 0 | starting | show processlist |
| 9 | root | localhost | uplooking | Query | 181 | User sleep | select *,sleep(60) from booboo |
| 10 | root | localhost | uplooking | Query | 7 | Waiting for table metadata lock | select * from booboo |
+----+------+-----------+-----------+---------+------+---------------------------------+-----------------------------------------+
5 rows in set (0.00 sec)
# id=9的线程为会话A 虽然是隐式事务,但是没有执行成功,所以为未提交的事务
# id=6的线程为会话B 在会话A有事务未提交的情况下,执行Alter操作,争抢metadata lock
# id=7的线程为会话C 隐式查询事务也会进入等待
# id=10的线程为会话D 显示查询事务同样进入等待

解决方法

# 查看metadatalock

## 第一种情况,则定位到长时间未提交的事务kill即可

# 查询 information_schema.innodb_trx 看到有长时间未完成的事务, 使用 kill 命令终止该查询。

select concat('kill ',i.trx_mysql_thread_id,';') from information_schema.innodb_trx i,
(select
id, time
from
information_schema.processlist
where
time = (select
max(time)
from
information_schema.processlist
where
state = 'Waiting for table metadata lock'
and substring(info, 1, 5) in ('alter' , 'optim', 'repai', 'lock ', 'drop ', 'creat'))) p
where timestampdiff(second, i.trx_started, now()) > p.time
and i.trx_mysql_thread_id not in (connection_id(),p.id);

场景2

  • 通过show processlist看不到booboo上有任何操作,但实际上存在有未提交的事务,可以在information_schema.innodb_trx中查看到。在事务没有完成之前,booboo的锁不会释放,alter table同样获取不到metadata的独占锁
  • 会话D提交事务或回滚或kill,则会话B中的Alter可继续执行
# 在场景1的基础上,将会话A的事务完成或者kill掉,会话C执行成功,但是会话B和会话D继续进入metadata锁的等待。原因是会话D虽然select可以执行,但是事务没有提交,则表上的metadata锁还存在,导致会话B的ddl操作无法执行。
# 会话B和会话D,情况1:知道有未完成的事务D,则结束会话D的事务,会话B正常执行。
# 会话B和会话D,情况2:不知道有未结束的事务D,如何排错呢?
=================================

-- 请根据具体的情景修改查询语句
-- 如果导致阻塞的语句的用户与当前用户不同,请使用导致阻塞的语句的用户登录来终止会话

## 场景2的情况,是在场景1的基础上,还是有metadatalock锁(*一般生产环境不会停服务,因此不停的有新的query发送过来,就会出现场景2*),则手动继续kill掉长事务即可,注意生产环境中,有可能ddl操作需要保留(*例如MDL锁出现在主从同步的从中,从库需要去执行主发送的表变更,当然,也可以先将主从停掉,手动执行alter操作,都可以*)以下方法是在停止对从库的读操作后,将非ddl的连接kill掉

select id,State,command from information_schema.processlist where State="Waiting for table metadata lock";
select timediff(sysdate(),trx_started) timediff,sysdate(),trx_started,id,USER,DB,COMMAND,STATE,trx_state,trx_query from information_schema.processlist,information_schema.innodb_trx where trx_mysql_thread_id=id;
show processlist;
select concat('kill ',trx_mysql_thread_id,';') from information_schema.processlist,information_schema.innodb_trx where trx_mysql_thread_id=id and State!="Waiting for table metadata lock";

===============================
mysql> show processlist;
+----+------+-----------+-----------+---------+------+---------------------------------+-----------------------------------------+
| Id | User | Host | db | Command | Time | State | Info |
+----+------+-----------+-----------+---------+------+---------------------------------+-----------------------------------------+
| 6 | root | localhost | uplooking | Query | 275 | Waiting for table metadata lock | alter table booboo add q6 int default 0 |
| 7 | root | localhost | uplooking | Sleep | 269 | | NULL |
| 8 | root | localhost | uplooking | Query | 0 | starting | show processlist |
| 10 | root | localhost | uplooking | Sleep | 249 | | NULL |
| 12 | root | localhost | uplooking | Sleep | 191 | | NULL |
+----+------+-----------+-----------+---------+------+---------------------------------+-----------------------------------------+
5 rows in set (0.00 sec)
# 查看当前进程发现除了Alter之外没有对booboo表的操作

mysql> select timediff(sysdate(),trx_started) timediff,sysdate(),trx_started,id,USER,DB,COMMAND,STATE,trx_state,trx_query from information_schema.processlist,information_schema.innodb_trx where trx_mysql_thread_id=id;
+----------+---------------------+---------------------+----+------+-----------+---------+---------------------------------+-----------+-----------------------------------------+
| timediff | sysdate() | trx_started | id | USER | DB | COMMAND | STATE | trx_state | trx_query |
+----------+---------------------+---------------------+----+------+-----------+---------+---------------------------------+-----------+-----------------------------------------+
| 00:05:38 | 2017-08-18 20:21:07 | 2017-08-18 20:15:29 | 6 | root | uplooking | Query | Waiting for table metadata lock | RUNNING | alter table booboo add q6 int default 0 |
| 00:05:38 | 2017-08-18 20:21:07 | 2017-08-18 20:15:29 | 10 | root | uplooking | Sleep | | RUNNING | NULL |
+----------+---------------------+---------------------+----+------+-----------+---------+---------------------------------+-----------+-----------------------------------------+
2 rows in set (0.00 sec)
# 查看innodb_trx表可以看到除了alter之外有未完成的事务,但是看不到具体query,得到线程id为10
# 就可以kill 10来结束事务
# 之后Alter正常操作

场景3

与场景2对比的现象不同于:

  • 场景2:未完成事务中存在未完成事务
  • 场景3:未完成事务中不存在未完成事务:确认有错误事务未提交或回滚,找到该事务的session_id然后杀死
  • 通过show processlist看不到booboo表有任何操作,在information_schema.innodb_trx中也没有任何进行中的事务。
  • 这很可能是因为在一个显式的事务中,对booboo表进行了一个失败的操作(比如查询了一个不存在的字段),这时事务没有开始,但是失败语句获取到的锁依然有效。从performance_schema.events_statements_current表中可以查到失败的语句
  • 也就是说除了语法错误,其他错误语句获取到的锁在这个事务提交或回滚之前,仍然不会释放掉。because the failed statement is written to the binary log and the locks protect log consistency但是解释这一行为的原因很难理解,因为错误的语句根本不会被记录到二进制日志
  • 解决方法:确认有错误事务未提交或回滚,找到该事务的sessionid然后杀死(难点)
# 场景3的出现和前两种不同
# 查看线程情况,看到alter操作metadata锁,还有其他的select操作有metadata锁
## 第一反应就是有可能是场景1,于是kill掉执行select的线程,再次查看线程情况,就只剩下执行alter线程了
## 接下来查看未完成的事务,如果是场景1,在kill掉冲突的线程后应该出现两种情况(A.alter操作正常执行B.线程中只有alter操作为waiting metadata lock状态;未完成事务中存在未完成事务)
## 但是却发现和B情况有所不同的是:未完成事务中不存在未完成事务,总结第三种情况(C.线程中只有alter操作为waiting metadata lock状态;未完成事务中不存在未完成事务)
# 通过搜索资料定位到是场景3,但资料中没有说怎么解决问题,又不能重新启动服务器,只有一个资料里提到了方法(确认有错误事务未提交或回滚,找到该事务的sessionid然后杀死,关键就是如何找到sessionid呢?performance_schema.events_statements_current中的thread_id为线程id并不是sessionid或者说会话id、连接id,如何通过thread_id找到session_id成为了难点?5.7中有个session表可以直接查到,而5.6中必须通过三表才能查到,分别为performance_schema.events_statements_current,performance_schema.threads,information_schema.processlist表。)
=====================================================================================
# kill掉除了写操作以外的query
select concat('kill ',id) from information_schema.processlist where State="Waiting for table metadata lock" and substring(info, 1, 5) not in ('alter' , 'optim', 'repai', 'lock ', 'drop ', 'creat');

# 寻找未提交或未回滚的错误事务,并kill即可
select t.processlist_id,t.processlist_time,e.sql_text from performance_schema.threads t,performance_schema.events_statements_current e where t.thread_id=e.thread_id and e.SQL_TEXT like '%t1%';
# 案例中假设是在t1表上有MDL锁,则,e.sql_text 近似匹配t1
# 本方法5.5 5.6 5.7 都通用。
=============================================================================

第一步:模拟第三种情况,会话11执行一个显示事务,且query出现列错误,t1表中不存在xx列,不提交。

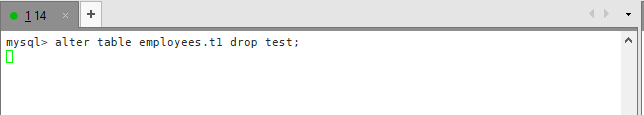

第二步:会话14中执行alter操作

mdl02

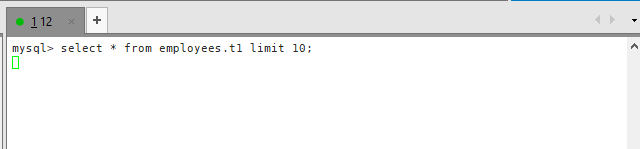

第三步:执行一条query

mdl03

第四步:会话15执行一个显示事务,查询t1表

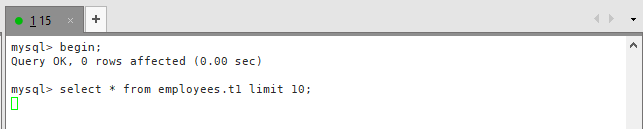

mdl04

第五步:查看当前的processlist情况,可以看到只要是对t1表的操作都出现了MDL锁等待;尝试通过第一种情况的解决方法找出阻塞的事务会话进行kill,发现不存在阻塞会话;查看当前未提交的事务发现返回空;通过过滤processlist中进行MDL锁等待且不是alter的会话id,进行kill。

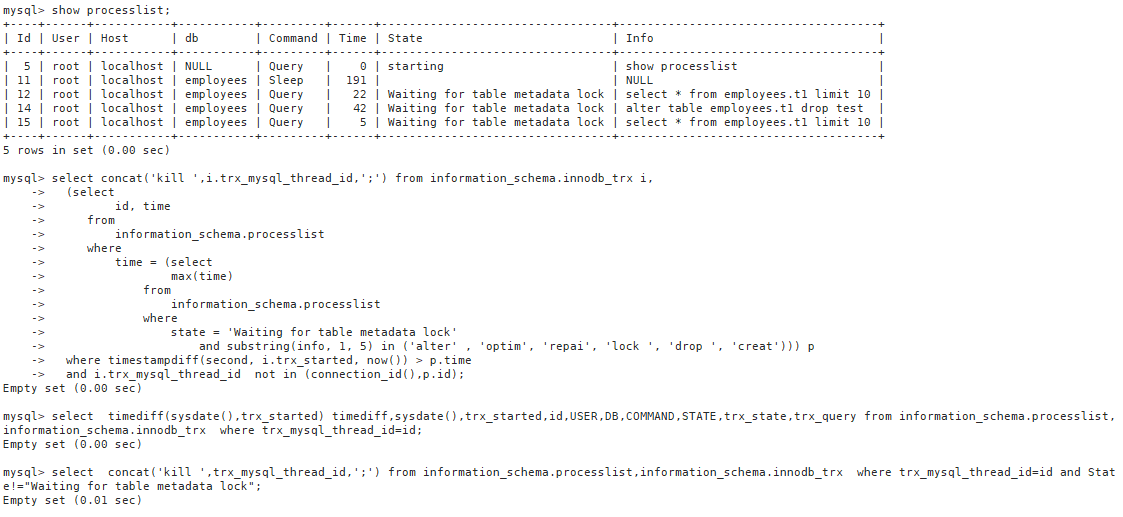

mdl06

第六步:只kill 12,15,留下执行alter的会话14;有人会想为什么都kill掉呢?因为即使现在kill掉了,t1表的MDL锁也不会释放掉,还不如留下会话14的ddl操作,等彻底解决了,自然就能执行这个操作。具体可以看下面的分析。

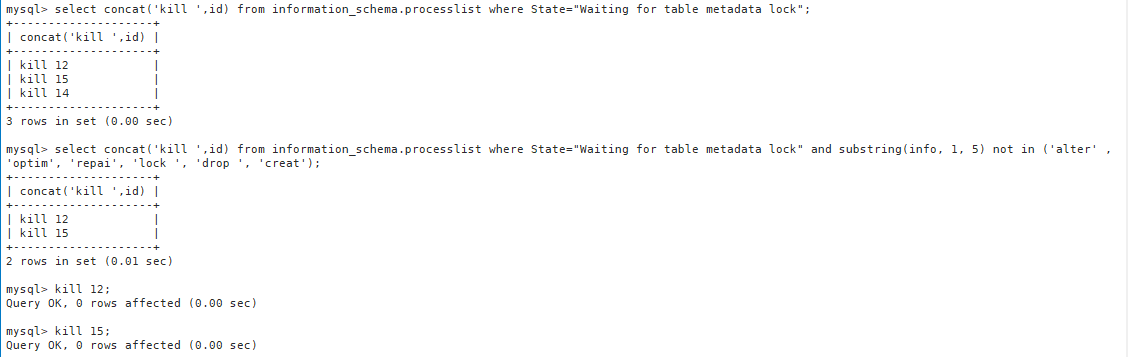

mdl07

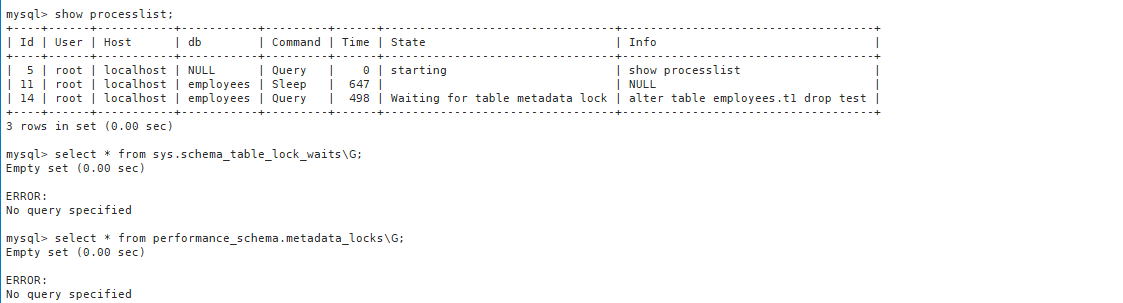

mdl08

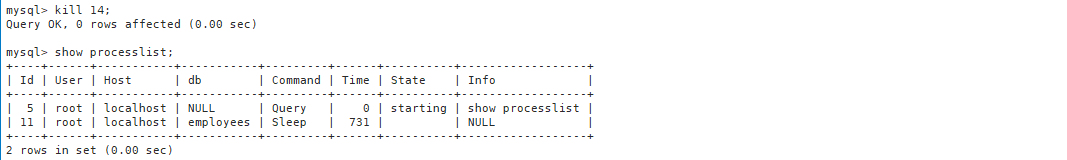

mdl09

第七步:给大家做个测试,即使将会话14的alter动作kill掉:

  • processlist中看不到任何等待MDL锁的会话;
  • sys.schema_table_lock_waits中也不存在表锁(5.7才有sys库);
  • performance_schema.metadata_locks中也不存在任何锁记录;
  • 会话16想再去执行alter操作,又开始了MDL锁等待。

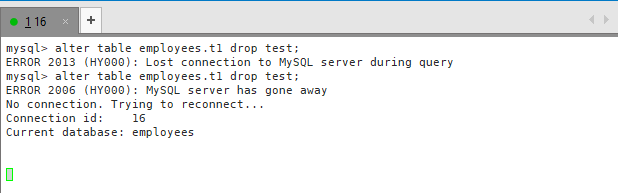

mdl10

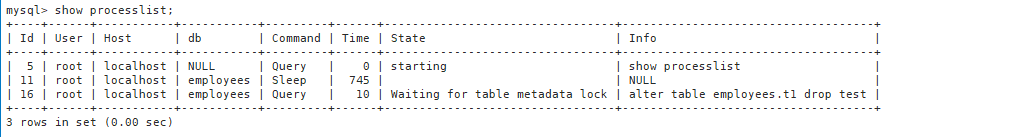

mdl11

第八步:此时就一定可以确定当前属于【有错误事务未提交或回滚导致的MDL锁】的情况了。我们找出这个错误事务,进行kill

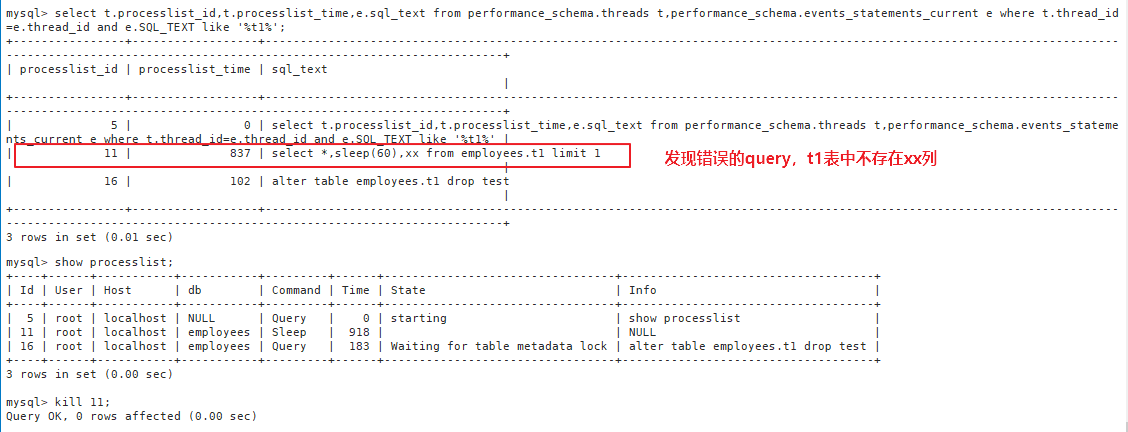

mdl12

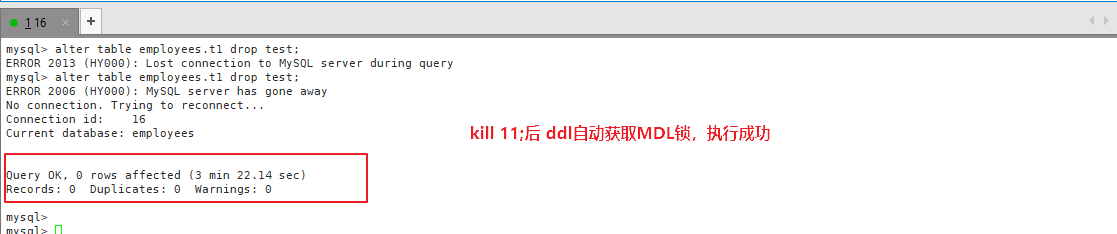

第九步:kill掉会话11后,成功将MDL锁释放。

有人又会问咯:为什么不将数据库重启?

回答:

如果说——

  1. 业务允许重启

  2. 不想找到问题的根源

    那么重启吧

如果说——

  1. 数据库上面多个库,关联多个业务,不能重启

  2. 想找到问题的根源,防止下次再次出现类似的问题

    那么你懂的

那么为什么不直接kill所有会话呢?同样如果你要找出问题的根源那么就排查,不想问为什么就直接kill吧,末尾有kill的脚本

mdl13

一步步分析如下:

mysql> show processlist;
+----+------+-----------+-----------+---------+------+---------------------------------+-----------------------------------------+
| Id | User | Host | db | Command | Time | State | Info |
+----+------+-----------+-----------+---------+------+---------------------------------+-----------------------------------------+
| 6 | root | localhost | uplooking | Query | 17 | Waiting for table metadata lock | alter table booboo add q9 int default 0 |
| 7 | root | localhost | uplooking | Query | 11 | Waiting for table metadata lock | select * from booboo |
| 8 | root | localhost | uplooking | Query | 0 | starting | show processlist |
| 14 | root | localhost | uplooking | Query | 5 | Waiting for table metadata lock | select * from booboo where id=3 |
| 15 | root | localhost | uplooking | Sleep | 28 | | NULL |
+----+------+-----------+-----------+---------+------+---------------------------------+-----------------------------------------+
5 rows in set (0.00 sec)
mysql> select timediff(sysdate(),trx_started) timediff,sysdate(),trx_started,id,USER,DB,COMMAND,STATE,trx_state,trx_query from information_schema.processlist,information_schema.innodb_trx where trx_mysql_thread_id=id;
Empty set (0.00 sec)
mysql> kill 7 ;
Query OK, 0 rows affected (0.00 sec)

mysql> kill 14;
Query OK, 0 rows affected (0.00 sec)

mysql> show processlist;
+----+------+-----------+-----------+---------+------+---------------------------------+-----------------------------------------+
| Id | User | Host | db | Command | Time | State | Info |
+----+------+-----------+-----------+---------+------+---------------------------------+-----------------------------------------+
| 6 | root | localhost | uplooking | Query | 86 | Waiting for table metadata lock | alter table booboo add q9 int default 0 |
| 8 | root | localhost | uplooking | Query | 0 | starting | show processlist |
| 15 | root | localhost | uplooking | Sleep | 97 | | NULL |
+----+------+-----------+-----------+---------+------+---------------------------------+-----------------------------------------+
3 rows in set (0.00 sec)

mysql> select timediff(sysdate(),trx_started) timediff,sysdate(),trx_started,id,USER,DB,COMMAND,STATE,trx_state,trx_query from information_schema.processlist,information_schema.innodb_trx where trx_mysql_thread_id=id;
Empty set (0.00 sec)

# 如果符合情况C,需要去查看performance_schema.events_statements_current表中是否有对booboo的错误语句(这里的错误语句是非语法错误的,例如select中写了不存在的列等情况)
# 从下面的查询结果可以看到,确实存在一个错误语句事件
# 通过该错误语句事件的THREAD_ID,到performance_schema.threads表查到该线程对应的PROCESSLIST_ID,而PROCESSLIST_ID进程id等于processlist中的id
mysql> select * from performance_schema.events_statements_current where SQL_TEXT like '%booboo%'\G;
*************************** 1. row ***************************
THREAD_ID: 31
EVENT_ID: 16
END_EVENT_ID: NULL
EVENT_NAME: statement/sql/alter_table
SOURCE: socket_connection.cc:101
TIMER_START: 3292336129737000
TIMER_END: 3521408438190000
TIMER_WAIT: 229072308453000
LOCK_TIME: 0
SQL_TEXT: alter table booboo add q9 int default 0
DIGEST: NULL
DIGEST_TEXT: NULL
CURRENT_SCHEMA: uplooking
OBJECT_TYPE: NULL
OBJECT_SCHEMA: NULL
OBJECT_NAME: NULL
OBJECT_INSTANCE_BEGIN: NULL
MYSQL_ERRNO: 0
RETURNED_SQLSTATE: NULL
MESSAGE_TEXT: NULL
ERRORS: 0
WARNINGS: 0
ROWS_AFFECTED: 0
ROWS_SENT: 0
ROWS_EXAMINED: 0
CREATED_TMP_DISK_TABLES: 0
CREATED_TMP_TABLES: 0
SELECT_FULL_JOIN: 0
SELECT_FULL_RANGE_JOIN: 0
SELECT_RANGE: 0
SELECT_RANGE_CHECK: 0
SELECT_SCAN: 0
SORT_MERGE_PASSES: 0
SORT_RANGE: 0
SORT_ROWS: 0
SORT_SCAN: 0
NO_INDEX_USED: 0
NO_GOOD_INDEX_USED: 0
NESTING_EVENT_ID: NULL
NESTING_EVENT_TYPE: NULL
NESTING_EVENT_LEVEL: 0
*************************** 2. row ***************************
THREAD_ID: 33
EVENT_ID: 74
END_EVENT_ID: NULL
EVENT_NAME: statement/sql/select
SOURCE: socket_connection.cc:101
TIMER_START: 3521408132304000
TIMER_END: 3521408462141000
TIMER_WAIT: 329837000
LOCK_TIME: 184000000
SQL_TEXT: select * from performance_schema.events_statements_current where SQL_TEXT like '%booboo%'
DIGEST: NULL
DIGEST_TEXT: NULL
CURRENT_SCHEMA: uplooking
OBJECT_TYPE: NULL
OBJECT_SCHEMA: NULL
OBJECT_NAME: NULL
OBJECT_INSTANCE_BEGIN: NULL
MYSQL_ERRNO: 0
RETURNED_SQLSTATE: NULL
MESSAGE_TEXT: NULL
ERRORS: 0
WARNINGS: 0
ROWS_AFFECTED: 0
ROWS_SENT: 1
ROWS_EXAMINED: 0
CREATED_TMP_DISK_TABLES: 0
CREATED_TMP_TABLES: 0
SELECT_FULL_JOIN: 0
SELECT_FULL_RANGE_JOIN: 0
SELECT_RANGE: 0
SELECT_RANGE_CHECK: 0
SELECT_SCAN: 1
SORT_MERGE_PASSES: 0
SORT_RANGE: 0
SORT_ROWS: 0
SORT_SCAN: 0
NO_INDEX_USED: 1
NO_GOOD_INDEX_USED: 0
NESTING_EVENT_ID: NULL
NESTING_EVENT_TYPE: NULL
NESTING_EVENT_LEVEL: 0
*************************** 3. row ***************************
THREAD_ID: 40
EVENT_ID: 8
END_EVENT_ID: 8
EVENT_NAME: statement/sql/select
SOURCE: socket_connection.cc:101
TIMER_START: 3280938133699000
TIMER_END: 3280938258470000
TIMER_WAIT: 124771000
LOCK_TIME: 0
SQL_TEXT: select abc from booboo
DIGEST: 871dd43dfdfb143e81439bbe7bf7b57e
DIGEST_TEXT: SELECT `abc` FROM `booboo`
CURRENT_SCHEMA: uplooking
OBJECT_TYPE: NULL
OBJECT_SCHEMA: NULL
OBJECT_NAME: NULL
OBJECT_INSTANCE_BEGIN: NULL
MYSQL_ERRNO: 1054
RETURNED_SQLSTATE: 42S22
MESSAGE_TEXT: Unknown column 'abc' in 'field list'
ERRORS: 1
WARNINGS: 0
ROWS_AFFECTED: 0
ROWS_SENT: 0
ROWS_EXAMINED: 0
CREATED_TMP_DISK_TABLES: 0
CREATED_TMP_TABLES: 0
SELECT_FULL_JOIN: 0
SELECT_FULL_RANGE_JOIN: 0
SELECT_RANGE: 0
SELECT_RANGE_CHECK: 0
SELECT_SCAN: 0
SORT_MERGE_PASSES: 0
SORT_RANGE: 0
SORT_ROWS: 0
SORT_SCAN: 0
NO_INDEX_USED: 0
NO_GOOD_INDEX_USED: 0
NESTING_EVENT_ID: NULL
NESTING_EVENT_TYPE: NULL
NESTING_EVENT_LEVEL: 0
3 rows in set (0.00 sec)

ERROR:
No query specified

mysql> select THREAD_ID,DIGEST_TEXT from performance_schema.events_statements_current where DIGEST_TEXT="SELECT `abc` FROM `booboo`";
+-----------+-----------------------------+
| THREAD_ID | DIGEST_TEXT |
+-----------+-----------------------------+
| 40 | SELECT `abc` FROM `booboo` |
+-----------+-----------------------------+
1 row in set (0.00 sec)

mysql> select * from performance_schema.threads where thread_id=40\G;
*************************** 1. row ***************************
THREAD_ID: 40
NAME: thread/sql/one_connection
TYPE: FOREGROUND
PROCESSLIST_ID: 15
PROCESSLIST_USER: root
PROCESSLIST_HOST: localhost
PROCESSLIST_DB: uplooking
PROCESSLIST_COMMAND: Sleep
PROCESSLIST_TIME: 402
PROCESSLIST_STATE: NULL
PROCESSLIST_INFO: NULL
PARENT_THREAD_ID: NULL
ROLE: NULL
INSTRUMENTED: YES
HISTORY: YES
CONNECTION_TYPE: Socket
THREAD_OS_ID: 22758
mysql> select PROCESSLIST_ID from performance_schema.threads where thread_id=40;
+----------------+
| PROCESSLIST_ID |
+----------------+
| 15 |
+----------------+
1 row in set (0.00 sec)

mysql> select * from information_schema.processlist where id=(select PROCESSLIST_ID from performance_schema.threads where thread_id=40);
+----+------+-----------+-----------+---------+------+-------+------+
| ID | USER | HOST | DB | COMMAND | TIME | STATE | INFO |
+----+------+-----------+-----------+---------+------+-------+------+
| 15 | root | localhost | uplooking | Sleep | 466 | | NULL |
+----+------+-----------+-----------+---------+------+-------+------+
1 row in set (0.00 sec)

mysql> kill 15;
Query OK, 0 rows affected (0.00 sec)

# 会话B
mysql> alter table booboo add q9 int default 0;
Query OK, 0 rows affected (9 min 54.35 sec)
Records: 0 Duplicates: 0 Warnings: 0

小知识点总结

三张表的关系

MySQL 5.6

  1. performance_schema库中,events_statements_current表中theard_idthreads表中的thread_id相同
  2. performance_schema库中,threads表中,thread_id和processlist_id为对应关系,thread_id表示一个独特的线程标识符;processlist_idshow processlist显示的id值,连接标识符;而对于后台线程(与用户连接不相关的线程),PROCESSLIST_ID为空,此值不是唯一的。
  3. information_schema库中,PROCESSLIST表是一个非标准表。id连接标识符,并由CONNECTION_ID()函数返回。
performance_schema performance_schema performance_schema information_schema
events_statements_current threads threads processlist
THREAD_ID THREAD_ID PROCESSLIST_ID ID

我的理解

  1. 线程表中保存了所有线程的信息,有前台的有后台运行的;
  2. 如果是由连接产生的线程,一般都是前台线程,会分配一个processlist_id,可以在information_schema.processlist中看到

资料参考

官网关于threads表的说明

官方关于processlist表的说明

MySQL5.7 MetaData Lock 案例分享

不同版本

MySQL 5.7

select * from performance_schema.events_statements_current\G
select * from sys.x$session\G
select * from sys.x$processlist\G

mysql> select * from x$session\G;
*************************** 1. row ***************************
thd_id: 3904
conn_id: 3879
user: root@localhost
db: sys
command: Query
state: Sending data
time: 0
current_statement: select * from x$session
statement_latency: 1564453000
progress: NULL
lock_latency: 847000000
rows_examined: 0
rows_sent: 0
rows_affected: 0
tmp_tables: 4
tmp_disk_tables: 1
full_scan: YES
last_statement: NULL
last_statement_latency: NULL
current_memory: 0
last_wait: NULL
last_wait_latency: NULL
source: NULL
trx_latency: NULL
trx_state: NULL
trx_autocommit: NULL
pid: 12880
program_name: mysql
1 row in set (0.05 sec)
mysql> select * from x$processlist limit 1\G;
*************************** 1. row ***************************
thd_id: 1
conn_id: NULL
user: sql/main
db: NULL
command: NULL
state: NULL
time: 230927
current_statement: NULL
statement_latency: NULL
progress: NULL
lock_latency: NULL
rows_examined: NULL
rows_sent: NULL
rows_affected: NULL
tmp_tables: NULL
tmp_disk_tables: NULL
full_scan: NO
last_statement: NULL
last_statement_latency: NULL
current_memory: 0
last_wait: NULL
last_wait_latency: NULL
source: NULL
trx_latency: NULL
trx_state: NULL
trx_autocommit: NULL
pid: NULL
program_name: NULL
1 row in set (0.06 sec)
mysql> select * from information_schema.processlist;
+------+------+-----------+------+---------+------+-----------+----------------------------------------------+
| ID | USER | HOST | DB | COMMAND | TIME | STATE | INFO |
+------+------+-----------+------+---------+------+-----------+----------------------------------------------+
| 3879 | root | localhost | sys | Query | 0 | executing | select * from information_schema.processlist |
+------+------+-----------+------+---------+------+-----------+----------------------------------------------+
1 row in set (0.00 sec)

MDL故障自愈

kill所有会话

不想知道故障原因,只想快速解决故障

#!/bin/bash
# kill掉 所有会话
user=xxx
password=xxx
host=xxxx.mysql.rds.aliyuncs.com
port=3306

mysql -u$user -p$password -h$host -P$port -e "select concat('KILL ',id,';') from information_schema.processlist;" > tmpfile

awk '{if (NR != 1) print $0 }' tmpfile | mysql -u$user -p$password -h$host -P$port

MDL故障排查和解决

MDL故障自愈脚本GitHub地址
